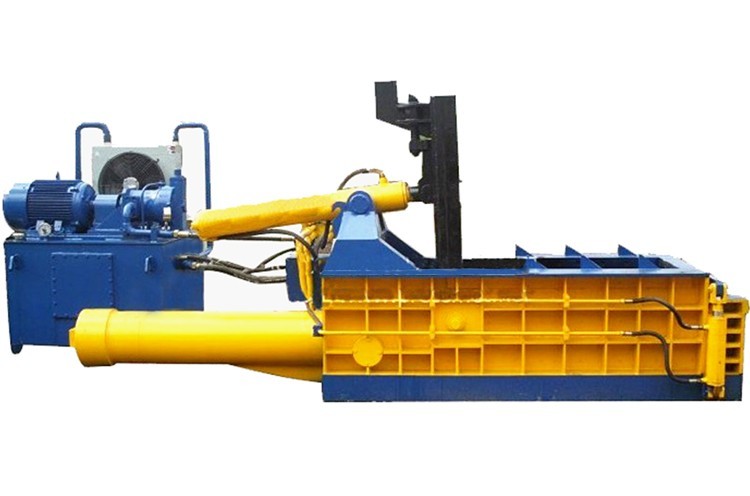

200 Ton Front-Out Metal Baler Featuring 37kW Power and 850×350mm Bale Section for Steel Scrap Processing

200 Ton Front-Out Metal Baler Featuring 37kW Power and 850×350mm Bale Section for Steel Scrap Processing
200 Ton Front-Out Metal Baler Featuring 37kW Power and 850×350mm Bale Section for Steel Scrap Processing
200 Ton Front-Out Metal Baler Featuring 37kW Power and 850×350mm Bale Section for Steel Scrap Processing 200 Ton Front-Out Metal Baler Featuring 37kW Power and 850×350mm Bale Section for Steel Scrap Processing 200 Ton Front-Out Metal Baler Featuring 37kW Power and 850×350mm Bale Section for Steel Scrap Processing 200 Ton Front-Out Metal Baler Featuring 37kW Power and 850×350mm Bale Section for Steel Scrap Processing
Informazioni di base
Luogo di origine: Cina
Marca: WANSHIDA
Certificazione: CE and ISO9001
Numero di modello: Y83-200
Quantità di ordine minimo: 1 insieme
Prezzo: Negoziabile
Imballaggi particolari: Imballaggio idoneo alla navigazione
Tempi di consegna: 45 giorni
Termini di pagamento: T/T
Capacità di alimentazione: 10 set/mese
Miglior prezzo Contattaci
Modello: Y83-200 Forza di compressione: 200 tonnellate
Dimensioni della camera: 1500×850×700mm Dimensione della balla: (150-350)×850×350mm
Pressione di esercizio: 22MPa (massimo 25MPa) Tempo di ciclo: ca. 70 secondi
Sistema di raffreddamento: refrigeratore d'aria Capacità di olio idraulico: ≥1200L

200 Ton Hydraulic Metal Baler | 1500×850×700mm Front-Out Scrap Metal Recycling Machine

The Y83-200 Hydraulic Metal Baler is a high-performance Scrap Metal Baler Machine designed for recycling yards, metal processing plants, foundries, steel mills, and waste management facilities. Featuring a 200-ton compression force, a 1500×850×700mm compression chamber, and a front-out bale discharge system, this Hydraulic Metal Baler efficiently compresses loose scrap metal into dense and transportable bales.

It is widely used for processing ferrous and non-ferrous metals while helping businesses reduce transportation costs, improve storage efficiency, and increase scrap value.

Cause

Scrap processors often encounter challenges such as:

  • Bulky scrap occupying valuable yard space
  • Rising transportation costs
  • Increased labor requirements
  • Inefficient storage management
  • Demand for higher-density furnace-ready scrap

These issues directly affect operational profitability.

Solution

The Y83-200 Hydraulic Scrap Baler addresses these challenges by:

  • Compressing loose scrap into dense bales
  • Increasing warehouse utilization
  • Reducing transportation frequency
  • Improving handling efficiency
  • Enhancing scrap value
  • Producing uniform bales suitable for steel mills

Its front-out bale discharge design ensures reliable operation and easy maintenance.

Specifications
Item Specification
Model Y83-200
Compression Force 2009kN (200 Ton)
Chamber Size 1500×850×700mm
Bale Size (150-350)×850×350mm
Working Pressure 22MPa (Max. 25MPa)
Bale Discharge Front-Out
Cycle Time Approx. 70 Seconds
Cooling System Air Cooler
Hydraulic Oil Capacity ≥1200L
Motor Model Y225S-4
Motor Power 37kW
Hydraulic Pump 160YCY14-1B
Pump Displacement 160ml/r
Rated Pressure 31.5MPa
Machine Size 5500×2000×2750mm
Total Power 46.75kW
Weight Approx. 10.5 Tons
Voltage 380V / 3Ph / 50Hz
Control Type Manual Valve Operation
Application

Suitable for:

  • Scrap Recycling Centers
  • Metal Processing Plants
  • Automobile Dismantling Facilities
  • Foundries
  • Steel Mills
  • Recycling Companies

Suitable Materials:

  • Scrap Steel
  • Iron Scrap
  • Aluminum Profiles
  • Copper Scrap
  • Stainless Steel Scrap
  • Metal Turnings
  • Light Metal Scrap
How It Works

The main hydraulic cylinder compresses the scrap material inside the chamber. The lid cylinder and side cylinders assist in forming a dense bale. Once compression is completed, the front-out discharge system pushes the finished bale out for easy collection and transportation.

How To Choose

Consider the following factors:

  1. Daily throughput requirements
  2. Material type
  3. Desired bale dimensions
  4. Installation space
  5. Power supply availability
  6. Future expansion plans

The Y83-200 is ideal for medium-sized recycling facilities seeking a balance between investment cost and productivity.

FAQ
Q1: What materials can this baler process?

Steel, iron, aluminum, copper, stainless steel scrap, and other recyclable metals.

Q2: Can the machine be upgraded to PLC control?

Yes, customized automation options are available.

Q3: Is the machine suitable for continuous operation?

Yes, it is designed for long-term industrial use.

Q4: Can voltage be customized?

Yes, different voltage standards are available.

Q5: What certifications are provided?

ISO9001 and CE certification options are available.

Advantages
  • Powerful 200 Ton Compression Force
  • Reliable Front-Out Bale Discharge
  • Fast 70-Second Cycle Time
  • Energy-Efficient 37kW Motor
  • Compact Design
  • Low Maintenance Cost
  • High-Density Bale Production
  • Excellent Return on Investment
After-Sales Service
  • One-Year Warranty
  • Lifetime Technical Support
  • Installation Guidance
  • Operator Training
  • Spare Parts Supply
  • Online Video Assistance
  • Overseas Engineer Service Available

With over 40 years of manufacturing experience and exports to more than 80 countries, Wanshida provides reliable hydraulic recycling equipment solutions worldwide.
